Advantages:
The smart solution for measuring and documenting surroundings, even outdoors
- Digital viewfinder with zoom function allows for precision over large distances, outdoors and in complex surroundings
- High-contrast IPS color display provides optimal readability
- Remote controlling for rapid measurements and Measure On App for simple results documentation

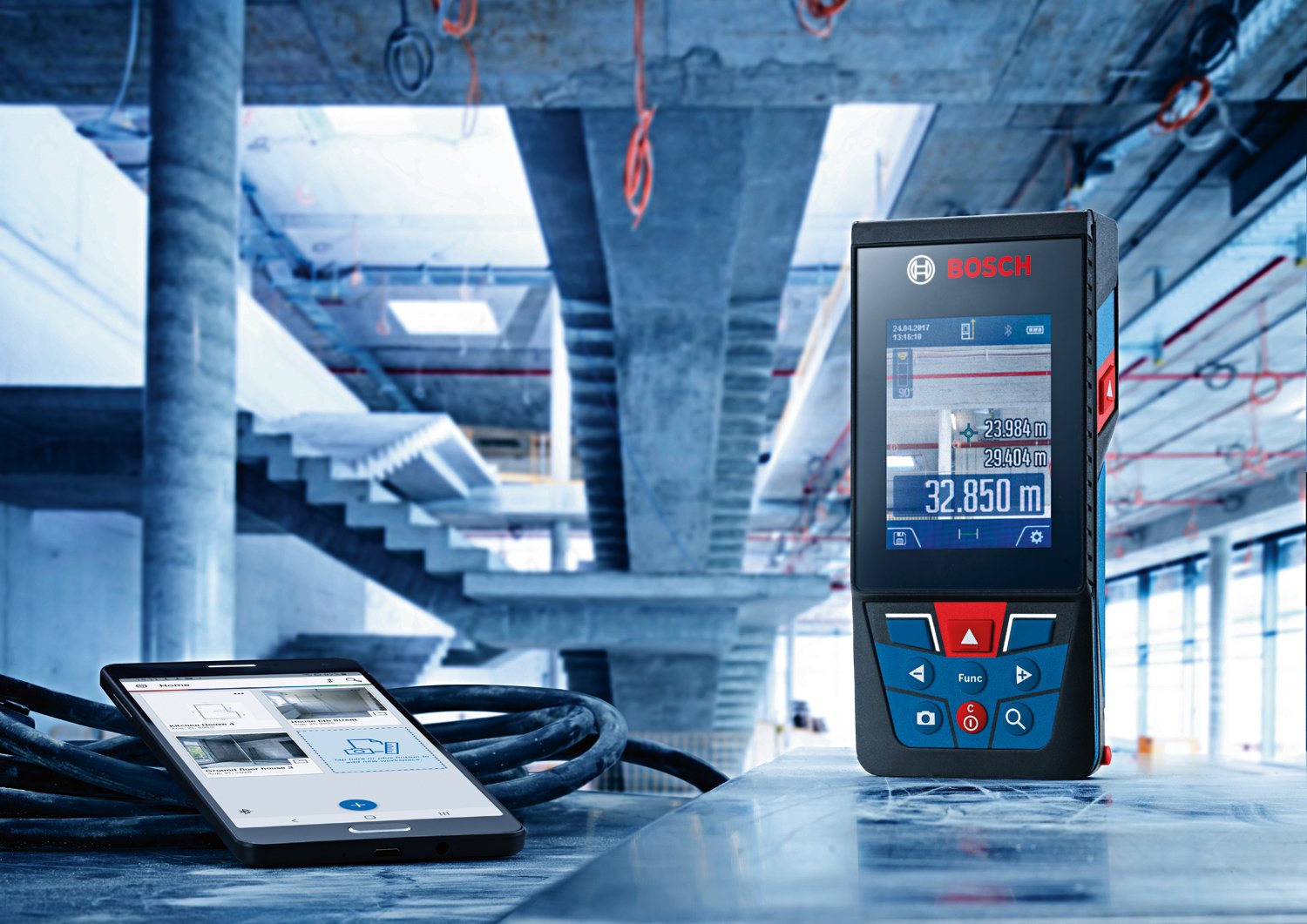

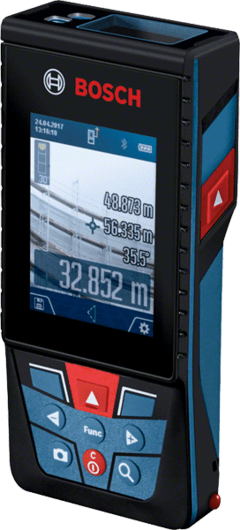

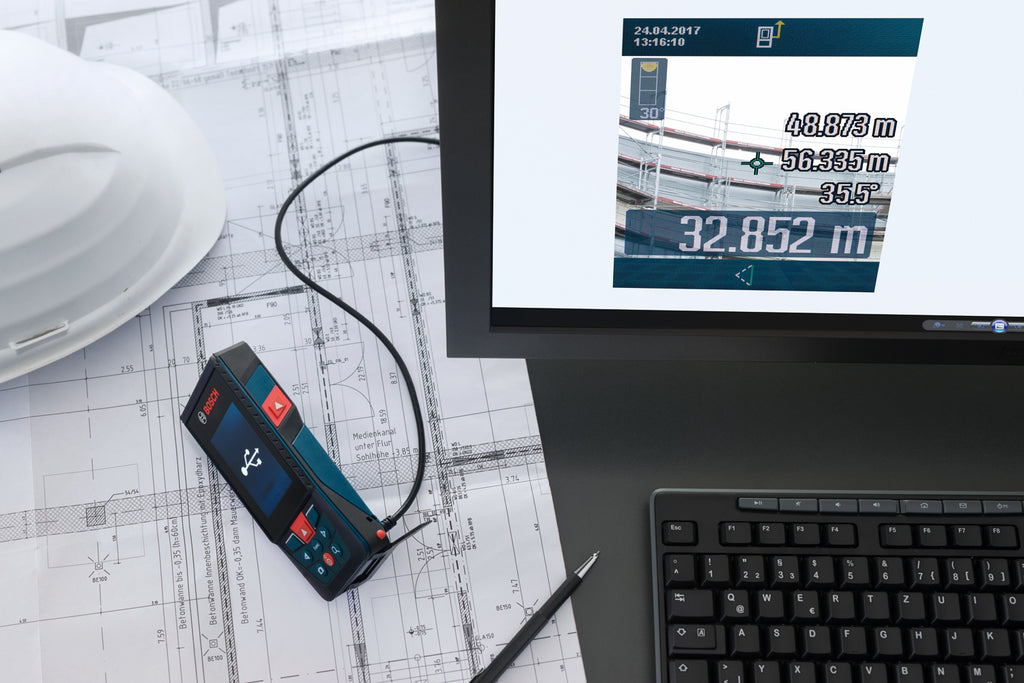

The laser measure GLM 120 C Professional is ideal for documenting surroundings and precisely measuring, even when working outdoors. The digital viewfinder allows for visual targeting in outdoor applications for distances up to 120 meters. Optimal clarity and durability are provided by the 2.8” color display with a protective screen. Fast collection and documentation of values are made possible by the micro-USB cable connection and the Measure On App.
This laser measure is the ultimate choice for measuring long distances, in complex surroundings and in situations of poor visibility.
The GLM 120 C Professional also has a user-friendly HMI interface with a click wheel for easy access to all the features and a useful help option with detailed images so that all of the functions are easily understandable.
Technical data:
|
Digital viewfinder:
|
integrated
|
|
Measurement time, typical:
|
< 0.5 s
|
|
Laser diode:
|
650 nm, < 1 mW
|
|
Measurement range:
|
0.08 – 120.00 m
|
|
Laser class:
|
2
|
|
Measurement accuracy, typical:
|
± 1.5 mm* (*plus use-dependent deviation)
|
|
Measurement range of incline measurement:
|
0 – 360° (4 x 90°)
|
|
Measuring accuracy (typical):
|
± 0.2°* (*plus use-dependent deviation)
|
|
Measurement time, max:
|
4 s
|
|
Power supply:
|
1 x 3.6 V Li-Ion battery (3120 mAh)
|
|
Automatic deactivation:
|
5 min
|
|
Weight, approx:
|
0.21 kg
|
|
Units of measurement:
|
m/cm/mm/ft/inch/ft-inch
|
|
Memory capacity (values):
|
50
|
|
Dust and splash protection:
|
IP 54
|
|
Tripod thread:
|
1/4"
|
|
Data transfer:
|
Bluetooth™ 4.2 Low Energy
|
|
Laser color:
|
Red
|
|
Measuring range, up to:
|
120 m
|
